Parts Washer Specifications

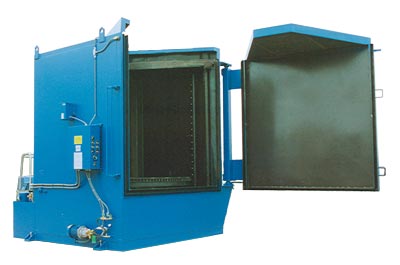

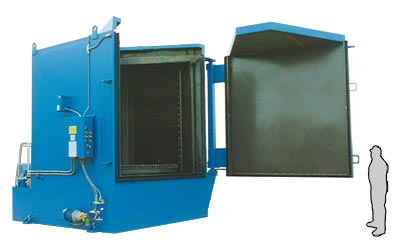

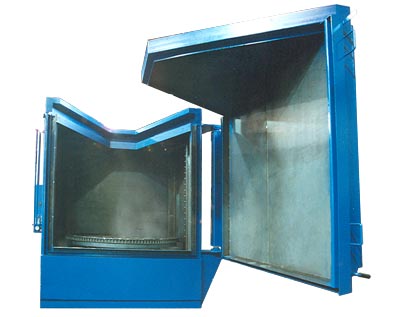

HURRICANE 120 Clamshell Style
With load capacities from 20,000 to 65,000 lbs, the Hurricane 120 is ideal for cleaning applications common in off-road equipment and steel mill component rebuilding.  The Hurricane 144 is a larger version of HURRICANE 120 with work height to 17 feet.


HURRICANE 120 Clamshell Style


request quote / info

Features & General Construction:


Closed Loop Zero Discharge

Standard



Wash Pump Suction Strainer

Standard



Adjustable Thermostat

Standard



Temperature Gauge

Standard



24 Hour 7 Day Clock

Standard



Low Water System Shut-Off

Standard



Door Safety Interlock

Standard



Wash Cycle Timer

Standard



Sheet Steel Cabinet Thickness

1/4 inch



230 V or 460 V 60 Hz, 3-Ph Controls

Standard



Automatic Water Level Control & Refill

Standard





Power Blast Manifold:



OSCILLATING NON-SYNCHRONOUS



Angle of Oscillation

40 degrees



Frequency of Oscillation

4 per minute



Number of Wash Nozzles

32



Type of Nozzle

Vee-Jet



Nozzle Material

316 Stainless



Nozzle Spray Pattern

25 degrees




Overall Dimensions:



Width ( Standard Unit )

164 inches



Depth ( Standard Unit )

158 inches

Height

160 inches

Empty Weight

25,500 lbs



Reservoir Capacity

1,647 gallons


Duplex Reservoir Add 47 gallons

Sludge Capacity

380 gallons




Work Area Dimensions:



Turntable Diameter

120 inches



Work Height

90 inches



Table Load Capacity

30,000 lbs



Heavy Duty Capacity

40,000 lbs


Heat System:



Operating Temperature

180 degrees F



Initial Heat-Up Time

120 Minutes



Element Size

120 kW




Electrical:



Motor Rating

Continuous Duty



Motor Starters

Across the Line



Enclosures

TEFC



Short Circuit Protection

Standard



Enclosures

NEMA 12



Overall Protection

Standard



Wiring Conduit

Flex Non-Metallic



Motor Type

Industrial



Type of Conduit

Liquidtight NEMA 12




Pump System & Performance:



High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller.  Note:  All performance data taken at nozzle tip.




Standard:
70 Horsepower (Duplex)
Total System Flow 489 gpm
Flow per Nozzle 15.3 gpm
System Pressure 138 psi
Blast Velocity 143 ft/sec


Optional Features:
  • 20,000 lb turntable
  • Short High Impact Manifold (SHIM)
  • Pump Sound Insulation
  • Pump Amp Meter
  • Cabinet Thermal Insulation
  • Auto Rinse Cycle (includes ASE)
  • Auto Steam Exhaust (ASE)
  • Rust Inhibitor Injector Pump
  • Steam Exhaust PVC Kit
  • High Output Electric Heat + 40 kW
  • Internal Reservoir Cover
  • Remote Grease Fittings
  • Auto Oil Skimmer
  • Heated Oil Skimmer
  • Sludge Drag-Out Conveyor + 10" to ht
  • Part Basket- Large pore with lid
  • 5,000 lb Ratchet Strap to secure parts
  • Turntable Fixture Kit
  • Hot Air Blow-Off 5 hp and 60 kW
  • Hour Meter
  • Turntable Jog
  • Gas Heat Source
  • EQ-1 Wastewater Treatment System
  • Industrial Control Package
  • Stretched Machine Wk Height Mild Steel
  • Stretched Machine Work Height Stainless Steel
  • Stainless Steel Cabinet
  • Stainless Steel Heat Exchanger


* NOTE: All Models available in Load Capacities Two to Three Times Greater
