TORNADO 40 HI-PROFILE
Retractable Turntable

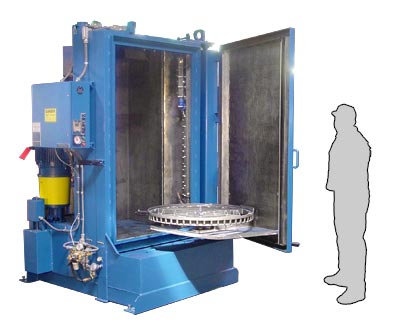

The Tornado 40 Hi-Profile Parts Washer is our most popular model accounting for over 20% of our total production.   Originally designed for washing mid-sized diesel engines used in Caterpillar and Komatsu off-road equipment, the Tornado-40HP is now used to wash Rail Bearings (up to 600 in 8 hours), Electric Motors and many other industrial parts.  MART also manufactures a stretch version of this model that removes overspray coatings from Paint Masks.



request quote / info

Features & General Construction:


Closed Loop Zero Discharge

Standard

Wash Pump Suction Strainer

Standard

Adjustable Thermostat

Standard

Temperature Gauge

Standard

24 Hour 7 Day Clock

Standard

Low Water System Shut-Off

Standard

Door Safety Interlock

Standard

Wash Cycle Timer

Standard

Sheet Steel Cabinet Thickness

7 ga

230 V or 460 V 60 Hz, 3-Ph Controls

Standard

Automatic Water Level Control & Refill

Standard


Power Blast Manifold:



OSCILLATING NON-SYNCHRONOUS



Angle of Oscillation

39 degrees

Frequency of Oscillation

4 per minute

Number of Wash Nozzles

20

Type of Nozzle

Vee-Jet

Nozzle Material

316 Stainless

Nozzle Spray Pattern

25 degrees



Overall Dimensions:



Width ( Standard Unit )

79 inches

Depth ( Standard Unit )

74 inches

Height

105 inches

Empty Weight

4,300 lbs

Reservoir Capacity

180 gallons

Duplex Reservoir Add 47 gallons

Sludge Capacity

47 gallons



Work Area Dimensions:



Turntable Diameter

41 inches

Work Height

63 inches

Table Load Capacity

2,000 lbs

Heavy Duty Capacity

3,500 lbs


Heat System:



Operating Temperature

140 - 180 degrees F

Initial Heat-Up Time

60 - 120 minutes

Element Size

30 kW



Electrical:



Motor Rating

Continuous Duty

Motor Starters

Across the Line

Enclosures

TEFC

Short Circuit Protection

Standard

Enclosures

NEMA 12

Overall Protection

Standard

Wiring Conduit

Flex Non-Metallic

Motor Type

Industrial

Type of Conduit

Liquidtight NEMA 12



Pump System & Performance:



High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller.  Note:  All performance data taken at nozzle tip.




Standard:
20 Horsepower
Total System Flow 269 gpm
Flow per Nozzle 13.5 gpm
System Pressure 107 psi
Blast Velocity 126 ft/sec
Upgrades:
30 Horsepower
Total System Flow 301 gpm
Flow per Nozzle 15.1 gpm
System Pressure 134 psi
Blast Velocity 141 ft/sec

40 Horsepower
Total System Flow 319 gpm
Flow per Nozzle 16 gpm
System Pressure 150 psi
Blast Velocity 149 ft/sec
55 Horsepower
Total System Flow 356 gpm
Flow per Nozzle 17.8 gpm
System Pressure 187 psi
Blast Velocity 166 ft/sec

70 Horsepower
Total System Flow 371 gpm
Flow per Nozzle 18.6 gpm
System Pressure 203 psi
Blast Velocity 173 ft/sec

Optional Features:
  • Turntable upgrade
  • Short High Impact Manifold (SHIM)
  • Pump Sound Insulation
  • Pump Amp Meter
  • Cabinet Thermal Insulation
  • Auto Rinse Cycle (includes ASE)
  • Auto Steam Exhaust (ASE)
  • Rust Inhibitor Injector Pump
  • Steam Exhaust PVC Kit
  • High Output Electric Heat + 15 kW
  • Internal Reservoir Cover
  • Remote Grease Fittings
  • Auto Oil Skimmer
  • Heated Oil Skimmer
  • Sludge Drag -Out Conveyor + 10" to ht
  • Parts Basket - large pore with lid
  • 5,000 lb Ratchet Strap to secure parts
  • Turntable Fixture Kit
  • Hot Air Blow-Off 3 hp and 30 kW
  • Hour Meter
  • Turntable Jog
  • Gas Heat Source
  • EQ-1 Wastewater Treatment System
  • Industrial Control Package
  • Stretched Machine Wk Height Mild Steel
  • Stretched Machine Work Height Stainless Steel
  • Stainless Steel Cabinet
  • Stainless Steel Heat Exchanger


* NOTE: All Models available in Load Capacities Two to Three Times Greater
