MART Products



Parts Washer Specifications

CYCLONE 2.2 Non-Retractable Turntable
Engineered originally for use an automotive parts washer, the Cyclone 2.2 is also popular with diesel component rebuilders and in new manufacturing work cells. It is available with all the options and cleaning power of the largest MART power washing systems.  The Cyclone 2.2 can be installed in the middle of the plant, without a floor drain, yet can wash, fresh water rinse and apply RP without discharging solution outside the cabinet for treatment or disposal.  It is environmentally safe and is designed to meet EPA and OSHA requirements.

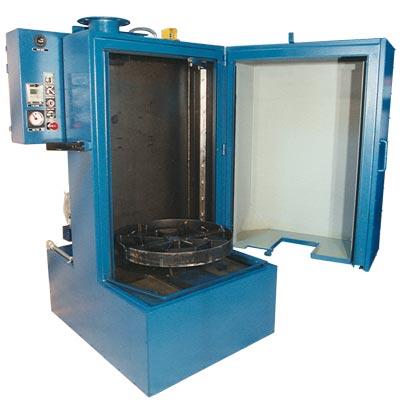

CYCLONE 2.2 Non-Retractable Turntable - Open

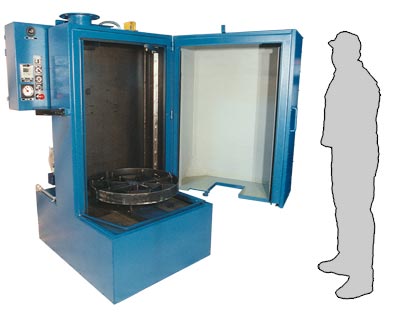

CYCLONE 2.2 Non-Retractable Turntable




request quote / info

Features & General Construction:



Closed Loop Zero Discharge

Standard

Wash Pump Suction Strainer

Standard

Adjustable Thermostat

Standard

Temperature Gauge

Standard

24 Hour 7 Day Clock

Standard

Low Water System Shut-Off

Standard

Door Safety Interlock

Standard

Wash Cycle Timer

Standard

Sheet Steel Cabinet Thickness

11 ga

230 V or 460 V 60 Hz, 3-Ph Controls

Standard

Automatic Water Level Control & Refill

Standard


Power Blast Manifold:



OSCILLATING NON-SYNCHRONOUS



Angle of Oscillation

60 degrees

Frequency of Oscillation

4 per minute

Number of Wash Nozzles

13

Type of Nozzle

Vee-Jet

Nozzle Material

316 Stainless

Nozzle Spray Pattern

25 degrees



Overall Dimensions:



Width ( Standard Unit )

48 inches

Depth ( Standard Unit )

55 inches

Height

76 inches

Empty Weight

1,700 lbs

Reservoir Capacity

77 gallons

Sludge Capacity

30 gallons



Work Area Dimensions:



Turntable Diameter

27 inches

Work Height

38 inches

Table Load Capacity

600 lbs

Heavy Duty Capacity




Heat System:



Operating Temperature

165-180 degrees F

Initial Heat-Up Time

45 – 90 minutes

Element Size

15 kW



Electrical:



Motor Rating

Continuous Duty

Motor Starters

Across the Line

Enclosures

TEFC

Short Circuit Protection

Standard

Enclosures

NEMA 12

Overall Protection

Standard

Wiring Conduit

Standard

Motor Type

Industrial

Type of Conduit

NEMA 12



Pump System & Performance:



High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller.  Note:  All performance data taken at nozzle tip.




Standard:
3 Horsepower
Total System Flow 100 gpm
Flow per Nozzle 7.7 gpm
System Pressure 36 psi
Blast Velocity 70.7 ft/sec


Upgrades:


5 Horsepower
Total System Flow 121 gpm
Flow per Nozzle 9.3 gpm
System Pressure 54 psi
Blast Velocity 86.5 ft/sec

7.5 Horsepower
Total System Flow 139 gpm
Flow per Nozzle 10.7 gpm
System Pressure 72 psi
Blast Velocity 98.3 ft/sec
Optional Features:
  • Hinged Flip-Up Turntable
  • Upgrades to 5 and 7.5 hp Pump System
  • Single Phase Electrics (5 hp only)
  • 208 Volt with Electric Heat
  • 208 Volt with Natural Gas or Propane Heat
  • Pump Sound Insulation
  • Pump Amp Meter (Simplex Pump)
  • Cabinet Thermal Insulation
  • Auto Rinse Cycle (includes ASE)
  • Auto Steam Exhaust (ASE)
  • Rust Inhibitor Injector Pump
  • Steam Exhaust PVC Kit- 6"
  • High Output Electric Heat +15 kW
  • Internal Reservoir Cover Standard
  • Remote Grease Fittings (Swivel)
  • Auto Oil Skimmer
  • Part Basket- Large pore with lid
  • Jib Boom with Trolley
  • 5,000 lb Ratchet Strap to secure parts
  • Turntable Fixture Kit
  • Hot Air Blow-Off 3 hp and 30 kW
  • Hour Meter
  • Turntable Jog
  • Gas Heat Source
  • EQ-1 Wastewater Treatment System
  • Industrial Control Package
  • Stainless Steel Cabinet- Wetted Parts
  • Stainless Steel Pump
  • Stainless Steel Heat Exchanger



* NOTE: All Models available in Load Capacities Two to Three Times Greater
