Parts Washer Specifications

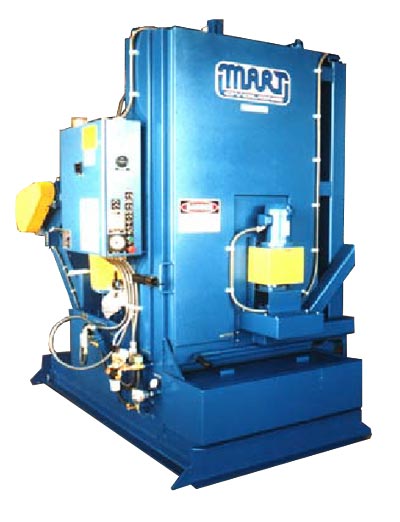

CYCLONE 30 HI-PROFILE
Retractable Turntable
Designed for automotive shops that rebuild engines, transmissions, and components, the Cyclone 30 is an auto parts washer that can prewash a complete engine before dismantling.  Of course, its power has also made it popular for applications like cleaning diesel heads and components and aircraft bearings for recycling.  It is also ideal for work cells in new manufacturing applications because it is a closed loop system that can wash, fresh water rinse and apply RP without discharging solution for treatment or disposal.  The Cyclone 30 is available with a retractable turntable, single lift door, or double lift door as well as Hi-Profile model that has a 55” tall work height.




request quote / info

Features & General Construction:



Closed Loop Zero Discharge

Standard

Wash Pump Suction Strainer

Standard

Adjustable Thermostat

Standard

Temperature Gauge

Standard

24 Hour 7 Day Clock

Standard

Low Water System Shut-Off

Standard

Door Safety Interlock

Standard

Wash Cycle Timer

Standard

Sheet Steel Cabinet Thickness

7 ga

230 V or 460 V 60 Hz, 3-Ph Controls

Standard

Automatic Water Level Control & Refill

Standard

Power Blast Manifold:



OSCILLATING NON-SYNCHRONOUS



Angle of Oscillation

39 degrees

Frequency of Oscillation

4 per minute

Number of Wash Nozzles

20

Type of Nozzle

Vee-Jet

Nozzle Material

316 Stainless

Nozzle Spray Pattern

25 degrees


Overall Dimensions:



Width ( Standard Unit )

66 inches

Depth ( Standard Unit )

 67 inches

Height

 93 inches

Empty Weight

3,500 lbs

Reservoir Capacity

130 gallons
Duplex Reservoir Add 47 gallons

Sludge Capacity

37 gallons


Work Area Dimensions:



Turntable Diameter

30 inches

Work Height

55 inches

Table Load Capacity

1000 lbs

Heavy Duty Capacity

  1,500 lbs


Heat System:



Operating Temperature

140-180 degrees F

Initial Heat-Up Time

60 – 120 minutes

Element Size

30 kW


Electrical:



Motor Rating

Continuous Duty

Motor Starters

Across the Line

Enclosures

TEFC

Short Circuit Protection

Standard

Enclosures

NEMA 12

Overall Protection

Standard

Wiring Conduit

Flex Non-Metallic

Motor Type

Industrial

Type of Conduit

Liquidtight NEMA 12


Pump System & Performance:



High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller. Note: All performance data taken at nozzle tip.




Standard:
20 Horsepower
Total System Flow 269 gpm
Flow per Nozzle 13..5 gpm
System Pressure 107 psi
Blast Velocity 126 ft/sec


Upgrades:


30 Horsepower
Total System Flow 301 gpm
Flow per Nozzle 15.1 gpm
System Pressure 134 psi
Blast Velocity 141 ft/sec

40 Horsepower
Total System Flow 319 gpm
Flow per Nozzle 16.0 gpm
System Pressure 150 psi
Blast Velocity 149 ft/sec
55 Horsepower
Total System Flow 356 gpm
Flow per Nozzle 17.8 gpm
System Pressure 187 psi
Blast Velocity 166 ft/sec
70 Horsepower
Total System Flow 371 gpm
Flow per Nozzle 18.6 gpm
System Pressure 203 psi
Blast Velocity 173 ft/sec
Optional Features:
  • Turntable load capacity upgrade
  • Short High Impact Manifold (SHIM)
  • Pump Sound Insulation
  • Pump Amp Meter
  • Cabinet Thermal/Noise Reduction Insulation
  • Auto Rinse Cycle (includes ASE)
  • Auto Steam Exhaust (ASE)
  • Rust Inhibitor Injector Pump
  • Steam Exhaust PVC Kit
  • High Output Electric Heat + 15 kW
  • Internal Reservoir Cover
  • Remote Grease Fittings
  • Auto Oil Skimmer
  • Heated Oil Skimmer
  • Sludge Drag Out Conveyor + 10" to ht
  • Parts Basket - large pore with lid
  • 5,000 lb Ratchet Strap to secure parts
  • Turntable Fixture Kit
  • Hot Air Blow-Off 3 hp and 30 kW
  • Hour Meter
  • Turntable Jog
  • Gas Heat Source
  • EQ-1 Wastewater Treatment System
  • Industrial Control Package
  • Stretched Machine Wk Height Mild Steel
  • Stretched Machine Work Height Stainless Steel
  • Stainless Steel Cabinet
  • Stainless Steel Heat Exchanger


* NOTE: All Models available in Load Capacities Two to Three Times Greater.
