Parts Washer Specifications

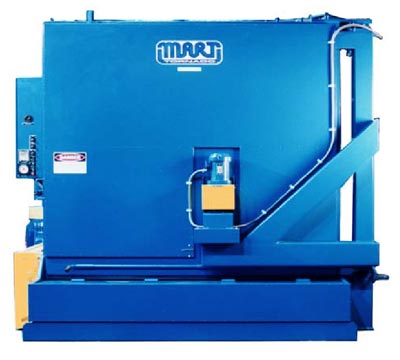

TORNADO 72 Retractable Turntable Front Loader Parts Washer
The Tornado 72 Washer is used for many of the same cleaning processes as the Tornado 60, but features a 72” diameter turntable and 66” work height. The front loader parts washer is also popular with DC and AC electric motor rebuilders, diesel transmission and carrier rebuild shops and with blenders of ink and paint who use it to wash tubs, totes and pails thoroughly and cost effectively.

Features & General Construction:

Closed Loop Zero Discharge

Standard

Wash Pump Suction Strainer

Standard

Adjustable Thermostat

Standard

Temperature Gauge

Standard

24 Hour 7 Day Clock

Standard

Low Water System Shut-Off

Standard

Door Safety Interlock

Standard

Wash Cycle Timer

Standard

Sheet Steel Cabinet Thickness

7 ga

230 V or 460 V 60 Hz, 3-Ph Controls

Standard

Automatic Water Level Control & Refill

Standard

Power Blast Manifold:

OSCILLATING NON-SYNCHRONOUS

Angle of Oscillation

18 degrees

Frequency of Oscillation

4 per minute

Number of Wash Nozzles

Type of Nozzle

Vee-Jet

Nozzle Material

316 Stainless

Nozzle Spray Pattern

25 degrees

Overall Dimensions:

Width ( Standard Unit )

123 inches

Depth ( Standard Unit )

102 inches

Height

112 inches

Empty Weight

8,100 lbs

Reservoir Capacity

550 gallons

Duplex Reservoir

Add 47 gallons

Sludge Capacity

80 gallons

Work Area Dimensions:

Turntable Diameter

72 inches

Work Height

66 inches

Table Load Capacity

5,000 lbs

Heavy Duty Capacity

7,000 lbs

Heat System:

Operating Temperature

140 - 180 degrees F

Initial Heat-Up Time

60 - 120 minutes

Element Size

60 kW

Electrical:

Motor Rating

Continuous Duty

Motor Starters

Across the Line

Enclosures

TEFC

Short Circuit Protection

Standard

Enclosures

NEMA 12

Overall Protection

Standard

Wiring Conduit

Flex Non-Metallic

Motor Type

Industrial

Type of Conduit

Liquidtight NEMA 12

Pump System & Performance:

High Efficiency, Rated for continuous duty (20 Start/hour without overheating), vertical, centrifugal, seal-less, balanced, enclosed impeller. Note: All performance data taken at nozzle tip.

Standard:

30 Horsepower

Total System Flow

343 gpm

Flow per Nozzle

14.3 gpm

System Pressure

121 psi

Blast Velocity

133 ft/sec

Upgrades:

55 Horsepower

Total System Flow

399 gpm

Flow per Nozzle

16.6 gpm

System Pressure

163 psi

Blast Velocity

155 ft/sec

70 Horsepower

Total System Flow

431 gpm

Flow per Nozzle

18.0 gpm

System Pressure

190 psi

Blast Velocity

168 ft/sec

Optional Features:

Turntable upgrade to 7,000
Short High Impact Manifold (SHIM)
Pump Sound Insulation
Pump Amp Meter
Cabinet Thermal Insulation
Auto Rinse Cycle (includes ASE)
Auto Steam Exhaust (ASE)
Rust Inhibitor Injector Pump
Steam Exhaust PVC Kit
High Output Electric Heat + 20 kW
Internal Reservoir Cover
Remote Grease Fittings
Auto Oil Skimmer
Heated Oil Skimmer
Sludge Drag Out Conveyor + 10" to ht
Parts Basket - large pore with lid
5,000 lb Ratchet Strap to secure parts
Jib Boom with Trolley (5000 lb capacity)
Turntable Fixture Kit
Hot Air Blow-Off 3 hp and 30 kW
Hour Meter
Turntable Jog
Gas Heat Source
EQ-1 Wastewater Treatment System
Industrial Control Package
Stretched Machine Wk Height Mild Steel
Stretched Machine Work Height Stainless Steel
Stainless Steel Cabinet
Stainless Steel Heat Exchanger

* NOTE: All Models available in Load Capacities Two to Three Times Greater
